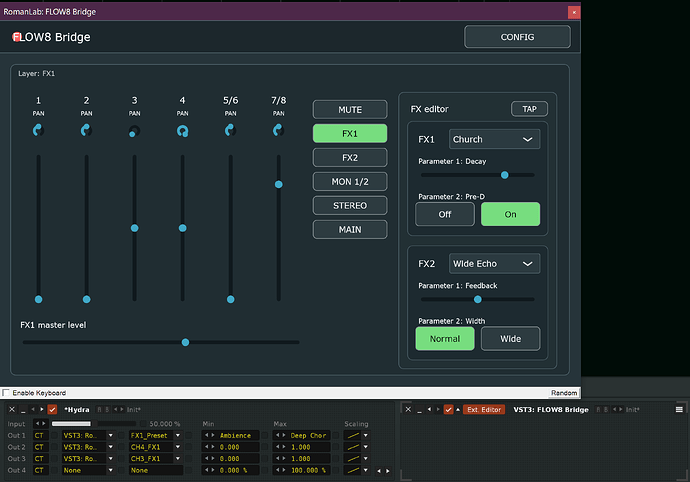

FLOW8 Bridge VST3
FLOW8 Bridge was created as a small VST3 bridge for the Behringer FLOW 8, because the mixer itself can handle MIDI control, but DAWs typically lack a convenient layer for automating its parameters directly as a plugin.
In Renoise, the FLOW8 Bridge is inserted as a normal VST3 audio effect into the DSP chain of a track. It does not process the audio; it exposes automatable VST3 parameters. These parameters can then be controlled from Renoise automation, from the plugin’s GUI, or using Meta Devices such as HYDRA. The Bridge translates parameter changes into MIDI CC / Program Change messages for the Behringer FLOW 8.
FLOW8 Bridge will find the Behringer FLOW 8 itself if it is connected to USB. There is no need to add it to Renoise DAW as a MIDI Device. FLOW 8 MIDI OUT must be free, unassigned in Renoise DAW, there is no deeper meaning to add it to the MIDI device of Renoise DAW, or another DAW.
The goal is to make the FLOW 8 hardware mixer a device that can be controlled from the DAW in a similar way to a regular VST parameter.
What bridge does
runs as a VST3 audio effect
passes audio through unchanged
exposes stable automatable parameters to DAW
converts VST3 parameter changes to MIDI CC / Program Change
sends data to FLOW 8 MIDI OUT
allows you to control:
channel volume to MAIN
FX1 / FX2 sends
MON1 / MON2 sends
& supports forcing MON1 and MON2 to STEREO mode, or SINGLE MONO monitor 1 and 2.
PAN : panning Left <> Right
MAIN / FX / MON12 *STEREO / MON1 / MON2 > master levels
FX1 / FX2 preset * 1 - 16
FX1 / FX2 effect parameter 1 (value CC 00 - 127)
FX1 / FX2 effect parameter 2 as A/B switch
support real name FX1 program, parametr 1, parameter 2
Why it was created :
Primarily created because of Renoise and HYDRA DSP, where it is possible to map VST3 parameters to an internal automation/modulation system. This allows you to control FLOW 8 from Renoise as an external hardware mixer.
But the principle is not limited to Renoise. Since it is a regular VST3 plugin, the same concept can make sense in other DAWs.
Example of use in other DAWs
In Cubase, Reaper, Bitwig, Studio One or similar DAWs, you can insert FLOW8 Bridge as a VST3 effect into your project and automate its parameters in automation lanes.
Example:
in DAW you create automation for CH1_Main
FLOW8 Bridge converts it to MIDI CC for FLOW 8
physical FLOW 8 changes the level of channel 1 to MAIN bus
Or:
you automate FX1_Preset
bridge sends Program Change to FLOW 8
FLOW 8 switches FX1 effect to Ambience, Room, Temple etc.
Or:
you automate FX2_Param_1
bridge sends CC1 to FX2 engine
in FLOW 8 you change for example feedback / delay effect parameter
Practical sense
FLOW8 Bridge is designed for people who want to:
use FLOW 8 as part of a DAW project
save automation directly in the song
control hardware mixer from timeline / automation
have clear parameter names instead of manual MIDI mapping
combine hardware mixer with modern DAW workflow
In short: FLOW8 Bridge makes FLOW 8 a better automatable hardware mixer inside a DAW project.
**Current behavior of FLOW8 Bridge VST3
FLOW8 Bridge does not try to be a dominant control center.
In its current form, it functions as a one-way DAW → FLOW 8 bridge.
Respects physical FLOW 8 settings
If you set something directly on FLOW 8:
physical fader,
send,
pan,
FX preset,
FX parameter,
then the bridge will not override it by itself until a new change to the given parameter comes from the VST3 GUI or from DAW automation / HYDRA DSP.
FLOW8 Bridge does not send a continuous status dump. It only sends changes to VST3 parameters.
Yes, FLOW8 Bridge in Renoise belongs to:
Track DSP chain
i.e. as a regular DSP effect on a track.
Not as an instrument, not as a MIDI device, not as a send device.
Practically:
Renoise Track
→ DSP chain
→ FLOW8 Bridge VST3
→ exposed VST3 parameters
→ HYDRA DSP / Automation can control parameters
The principle of physical TAP TEMPO is simple: FLOW 8 measures the time interval between each TAP press and derives the tempo / delay time from it.
For these purposes, TAP is parameter mappable thanks to the FLOW8 bridge.
How to use TAP physically
You don’t hold down the button. You just tap in rhythm:
TAP TAP TAP TAP
|------|------|------|
intervals between presses = tempo
Minimum
The practical minimum is:
2 TAPs
The first TAP sets the start of the measurement, the second one gives FLOW 8 the time interval.
Recommended use
It is better to give:
3 to 4 regular TAPs
This will make the tempo more accurate, because the device has more intervals and reacts less to one inaccurate press.
Example
120 BPM
One quarter beat at 120 BPM lasts 0.5 s.
TAP every 0.5 seconds
60 BPM
TAP every 1 second

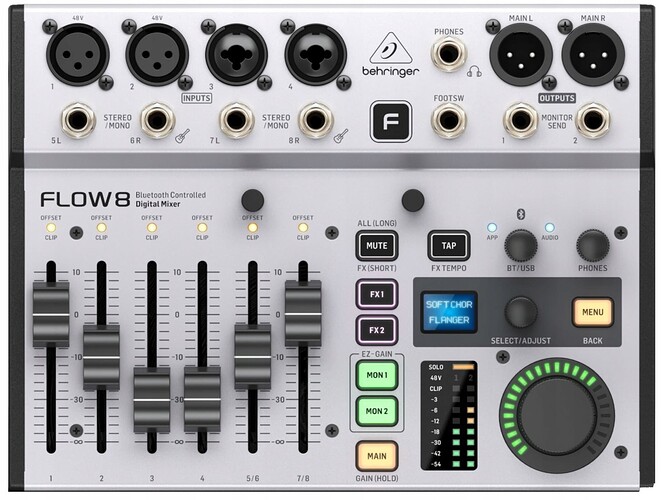

Let me know who already has a Behringer FLOW 8 digital mixer, its own 10 audio IN and 4 audio out channel sound card. For its price, it has become a very popular assistant, with excellent FX1, FX2.
You can download FLOW8_Bridge.vst3_.zip from my website… at the same time I don’t have a singed certificate installed… so the antivirus will curse you, maybe even Win11. However, .vst3 is already functional. I will deal with the singed certificate later.
Security Note: This is a freshly compiled indie VST3 bundle without expensive code-signing certificates. Aggressive browser guards or antiviruses (like Malwarebytes) might trigger a false positive warning. The file is completely clean and safe to download.
https://zorgan.cz/behringer-flow-8-bridge-vst3/
