New Tool: Simple Sample Beat Detector

Hello,
It’s a simple beat detector.
Searches for beats in the sample and places a marker in its place.
The main word in it has a lowpass filter so it won’t find beats in higher frequencies (hi-hat and others).
It is prone to noise so the cleaner the sample the better :slight_smile:
It’s just another option for zero crossing, but it’s more about something else.
With long samples, of course, detection ends at the 255 marker.

It’s just a toy, use at your own risk.

Version v0.02
The deletion of ‘slice marks’ is now automatic.
Fixed a gross error when ‘Trigger settings’ did not work at all!
Higher detection sensitivity set for release time.

Version v0.03
I’m still experimenting with setting the values.
I tried a compromise with the filter and made it more ‘highpass’, strangely enough
it works better in all types of sounds.

Version v0.04
I modified BeatDetector a bit.
I wanted to focus on better finding the beginning of the beat, for which I used zero-crossing.
I rewrote the entire detection.
I’m quite satisfied with the lower frequencies and haven’t tested much with the higher ones like hi-hats yet.

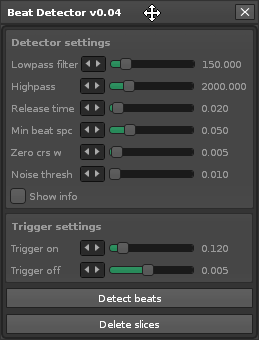

“Min beat spc” here you set the minimum distance between beats in s.
“Zero crs w” is the window size for searching for zero-crossing in s.
“Noise thresh” is the amplitude threshold for noise search

Snímek obrazovky_2025-03-06_20-24-55
